KTM FMX Bar Pad – 3D Printable STL

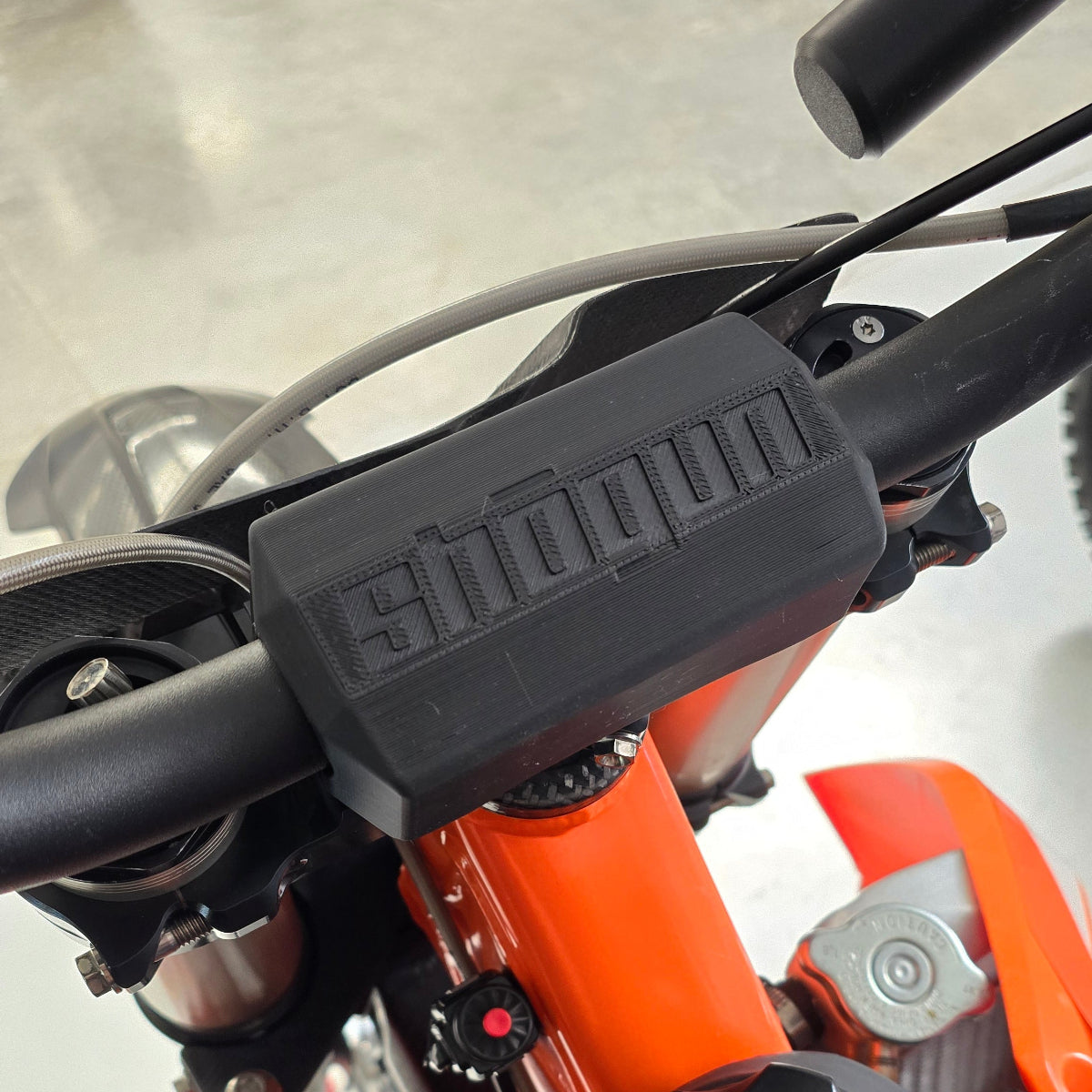

A purpose-built Shogun bar pad for KTM bikes running 1 1/8" handlebars and a split upper handlebar clamp.

Refined specifically for FMX, the pad uses a slimline profile to keep the bar area compact and unobstructed while still providing protection where it matters.

Printed in 95A TPU, the pad simply pushes into position and snap-locks around the bars. No straps or separate fasteners.

Important Fitment

A split upper handlebar clamp is required.

For the best fit, we recommend using the KTM split upper bar clamp:

HANDLEBAR CLAMP 28MM
KTM Part No. 77201038000

The pad uses the exposed handlebar clamping area created by the split upper clamp to lock into position.

If your setup uses a one-piece upper bar clamp, this bar pad will not fit.

Designed for:

• KTM
• 1 1/8" handlebars
• Split upper handlebar clamp

The design has been refined specifically for FMX use, with a slim profile to maximise clearance around the bars.

What You Get

• Shogun KTM Bar Pad STL file
• README with recommended 95A TPU print settings

This is a digital download only. No physical bar pad or mounting hardware is included.

Licence

© 2026 Shogun Innovations Ltd. All rights reserved.

This STL file is licensed for personal use only.

The file may not be shared, redistributed, resold or used for commercial production without written permission from Shogun Innovations Ltd.

If you would like to reproduce or sell physical prints of this design, contact Shogun to discuss commercial licensing.
